Viair 10002 VIAIR Quarter Duty Onboard Air System

Brand: VIAIR

Color: Multi

Features:

• Designed to actuacte smaller air horns, air lockers and for minor load levelling adjustments. Not intended for tire inflation.
• Includes all parts needed for installation of you very own onboard air solution for air lockers and small air horns. Just connect your air line into our onboard air system.
• 120 PSI maximum working pressure and 25% duty cycle

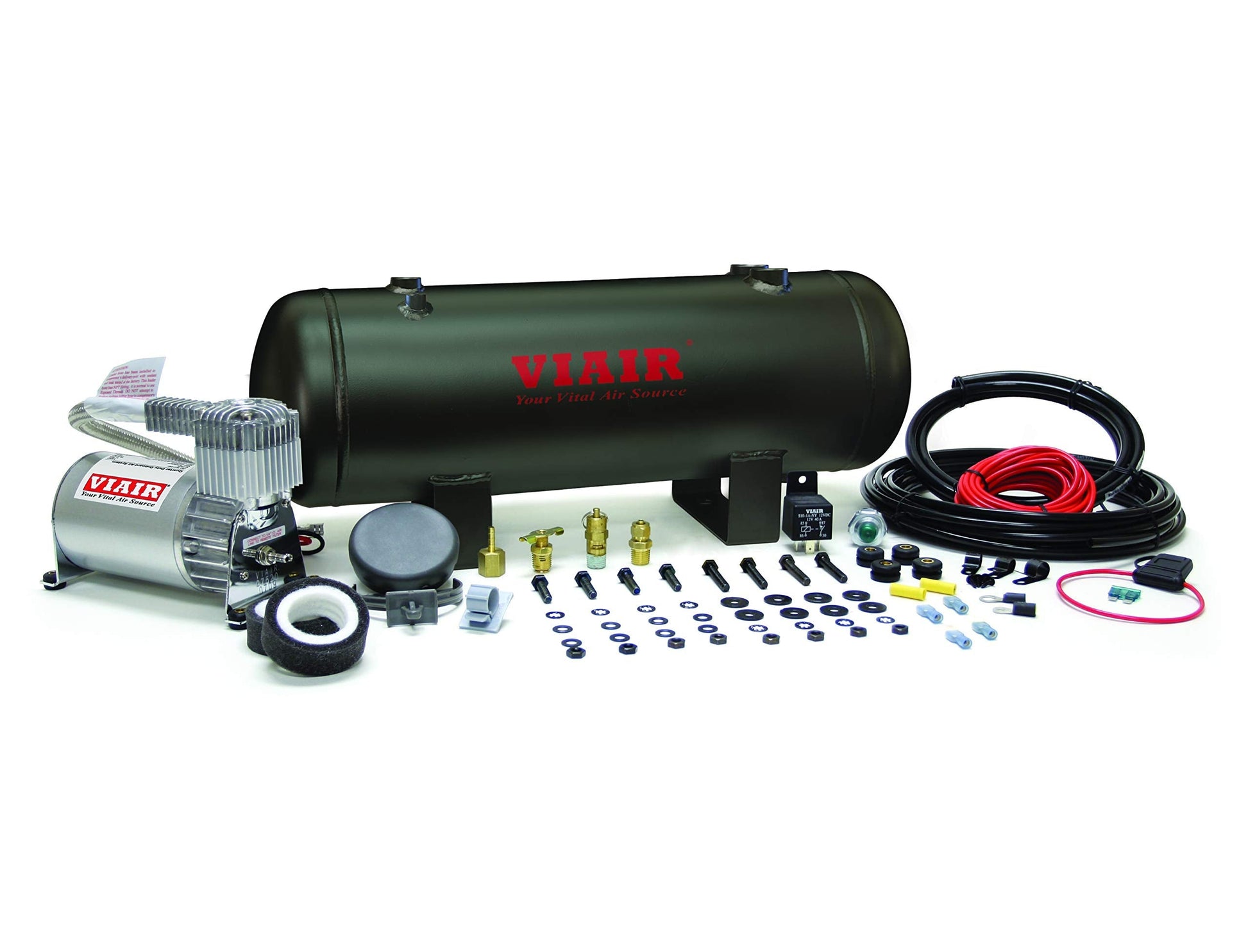

• Remote mount air filter assembly, sealed compressor, 2.0 gallon air tank, 90 to 120PSI pressure switch and more.
• Can be used to inflate helper bags for load leveling, inflate four tires up to 31 inches in diameter or use with heavy duty air horns.

Binding: Automotive

model number: 10002

Part Number: 10002

Details: Product Description

Quarter Duty Cycle Onboard Air System is a smaller, 120 psi onboard air system, suitable for many pneumatic needs, including smaller inflation tasks (not including the inflation of automotive tires), air horns and more. The 25% Duty Cycle Onboard Air System will provide enough service time to operate for about 10 minutes of continued use, providing you give the system 30 minutes to cool down afterwards.

From the Manufacturer

10002 Standard Features
Permanent Magnetic Motor Duty Cycle: 25% @ 100 PSI Max. Working Pressure: 150 PSI Max. Amp Draw: 18 Amps

EAN: 0731339231611

Package Dimensions: 22.0 x 14.2 x 10.2 inches
